No batteries, No wires
The MOÏZ start-up offers 100% autonomous sensors! Free from batteries and wires, our autonomous modules harvest thermal energy from your environment, converting wasted heat into the electrical energy needed for operation.
With several years of experience in thermal energy harvesting within industrial environments, we are proud to offer our customers an efficient, reliable, and versatile solution at a controlled cost. We have developed a fully autonomous measurement module that can be connected to any type of sensor, such as temperature, pressure, CO2, or infrared sensors, to suit diverse requirements.
Does our standard module not fully address your specific needs?
No problem. We are committed to addressing the unique challenges of all our customers, particularly in terms of autonomy. Whether you need a tailored solution or a collaborative development, we are ready to design or co-develop your next custom autonomous system!

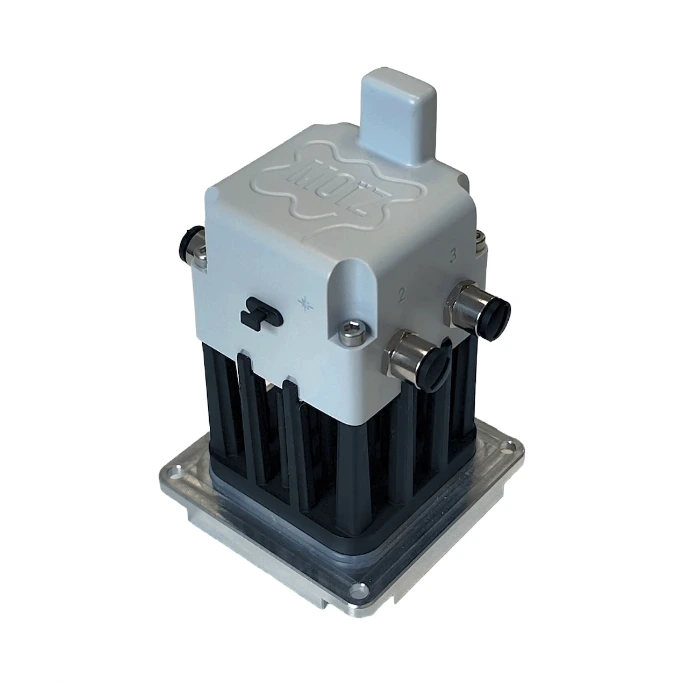

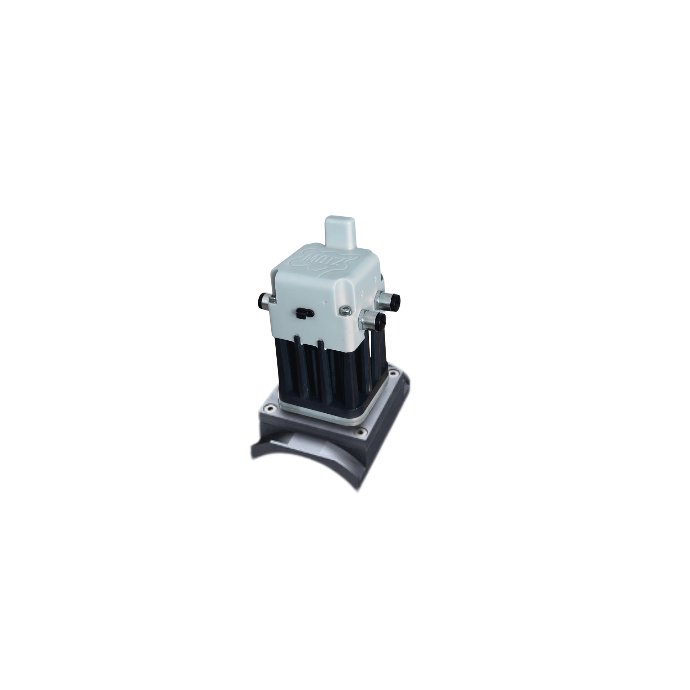

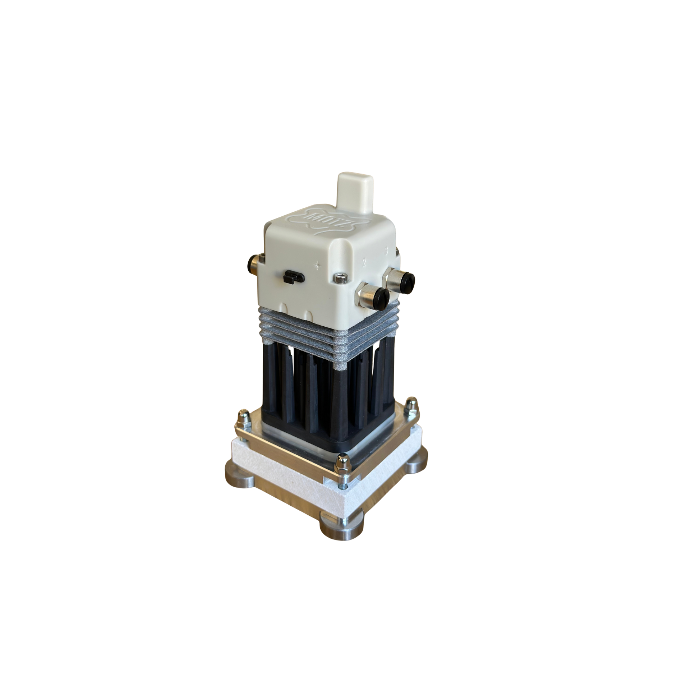

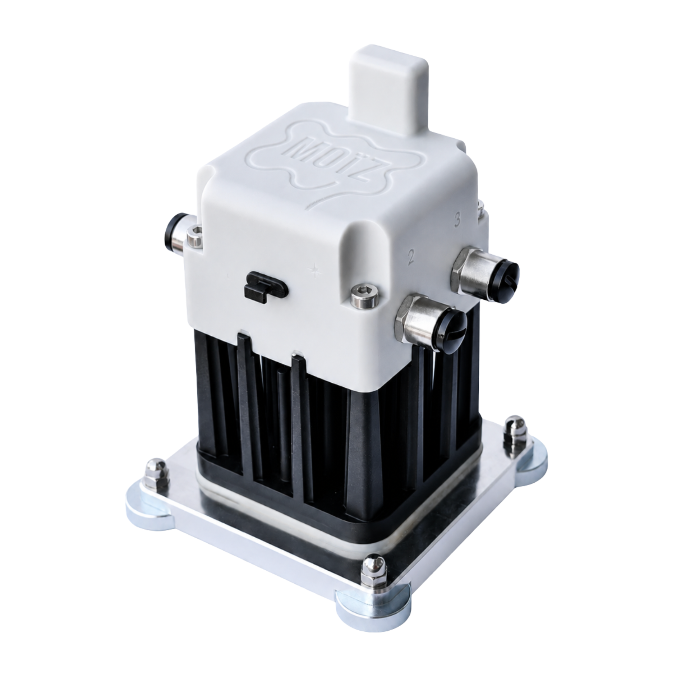

Harvestree autonomous mesurement module
The Harvestree module is an innovative solution for wireless data acquisition for industrial sites. Its batteryless design and ability to convert heat into electricity make it a highly efficient and sustainable option. With compatibility with various LPWAN technologies and the ability to support multiple sensors, it's a versatile and flexible solution for a large range of applications.
The module's rugged construction and waterproof design ensure reliable operation in harsh environments, without the need for battery replacements or maintenance. All it requires is a temperature difference of around 10°C between the surface on which it's mounted and the ambient air.

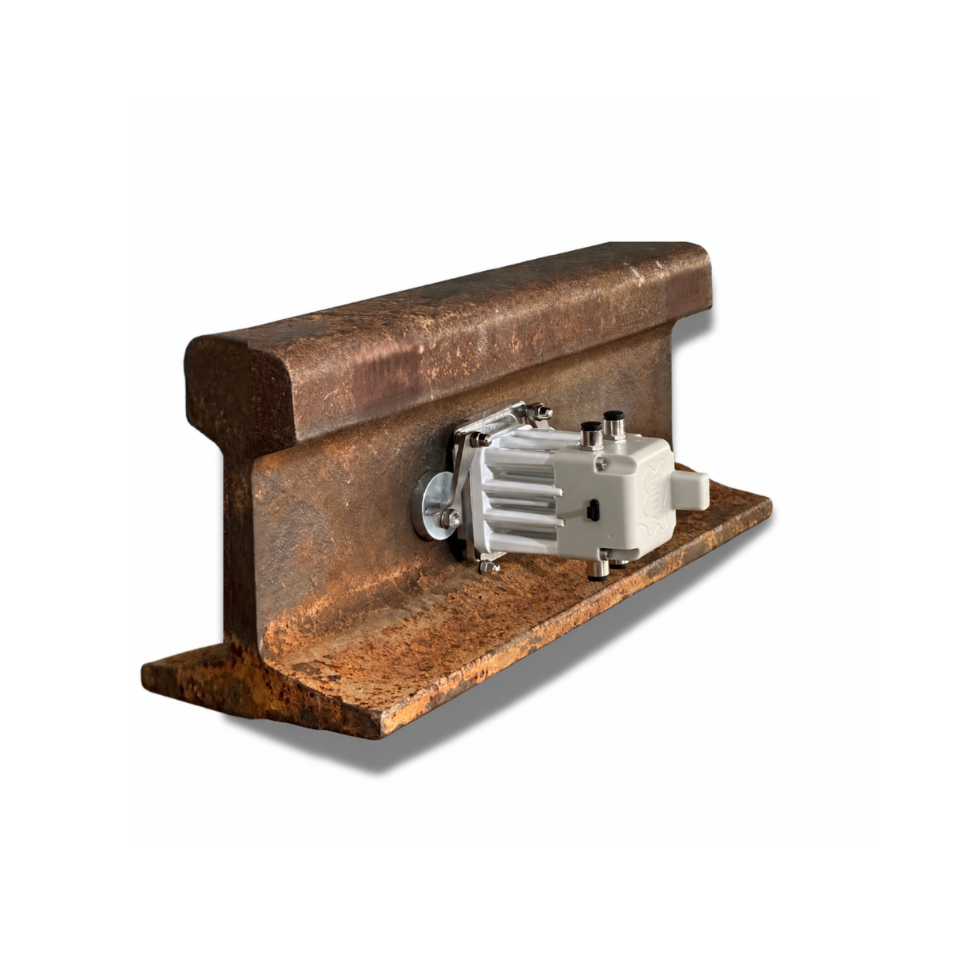

The Harvestree module addresses a wide range of industrial applications, demonstrating a particular suitability for industries such as steel, cement, glass, chemical, agri-food, and pharmaceutical production, as well as railway, smart grid, and rotating machine monitoring. Harvestree provides on-site data that are crucial for implementing process optimization and energy-saving strategies for industrial processes, as well as for equipment maintenance.
Highly versatile Sensors Management
The Harvestree node is engineered to seamlessly interface with up to 4 sensors, among a wide range of sensor types, providing flexibility to:
- integrate sensors already validated and utilized within your organization,
- select from the plug & play offerings in the MOÏZ catalog (please ask us), or
- procure sensors from the wider market.

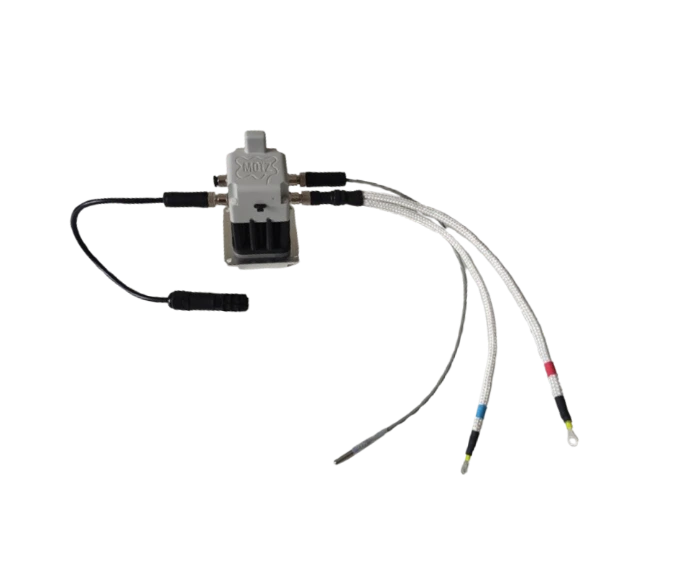

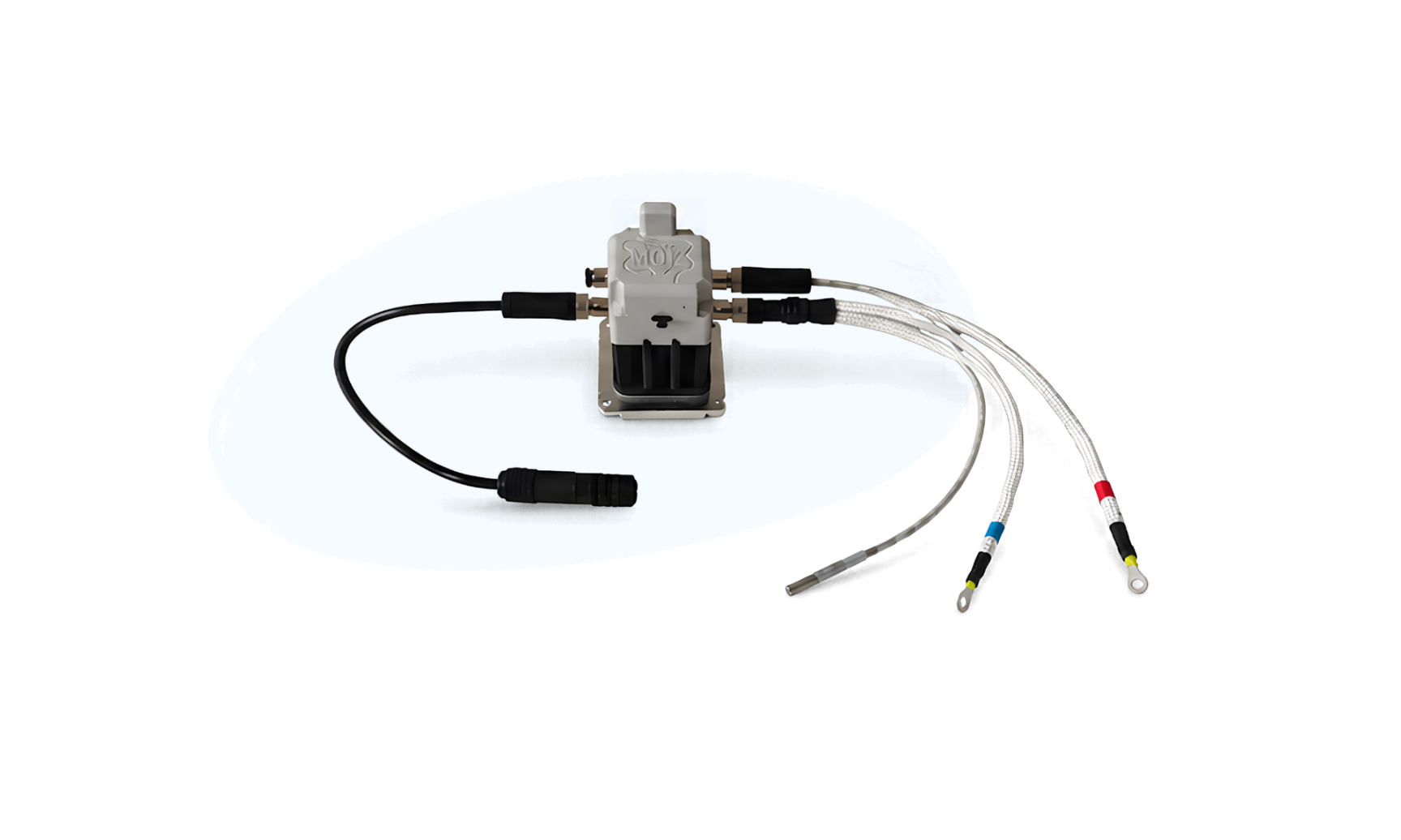

The Harvestree module has an internal Pt1000 sensor embedded within the aluminum base (B class with +/- 1°C accuracy) and 4 inputs equipped with waterproof 4-wire connectors that accept:
- Any Pt1000 probe or K-type thermocouple (temperature)
- Any analog signal ranging from -500 mV to +500 mV or positive only from 0 to 3V
- Any I2C sensor (temperature, humidity, pressure, moisture, hall-effect, and many more)
- Any dry contact input (control of openings, status of equipment or power supply, etc.)
- And much more (strain gauge, displacement gauge, etc.)
The Harvestree node can power the 4 sensors up to a voltage of 3.3V. For voltages exceeding 3.3V, please reach out to us directly.
Custom Product Development
Working together to provide energy autonomy to your system.
While MOÏZ develops a range of standard products, we also have the capability to adapt product designs to perfectly meet customer needs. By combining our expertise, we can collaboratively develop autonomous connected devices that integrate our autonomous measurement system.
Custom developments can involve the sensor or the entire product itself.

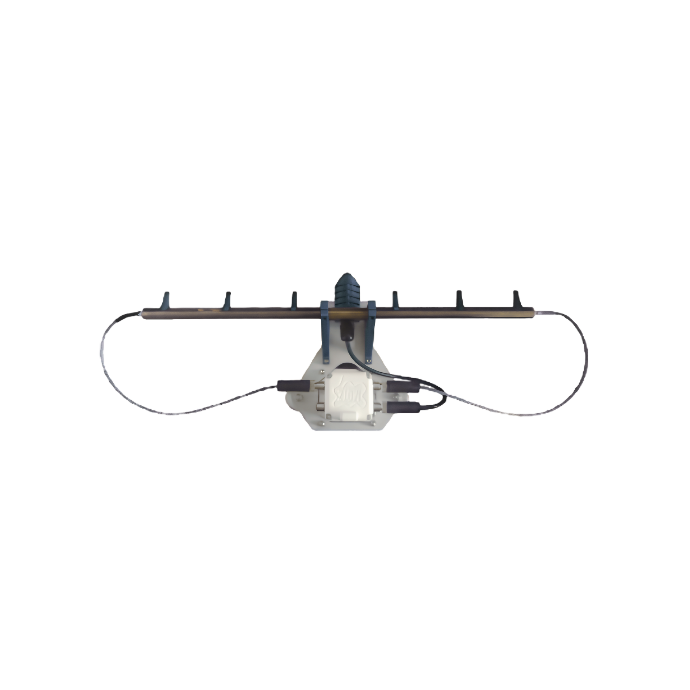

For the sensor, MOÏZ will provide expertise in crafting tailored solutions, including designing mounting fixtures for sensors or integrating them as electronic components within specialized casings, all made possible by our CAD design proficiency and rapid prototyping capabilities.
For a full custom product, based on the specifications defined upstream, our team will design and develop a unique autonomous device.
Contact us to discuss your specific requirements!
